Does Temperature Affect Solar Panel Output & Efficiency?

Solar panels under the sun

Solar modules collect energy from the sun. It seems logical to suggest that the more sun there is, the more energy the modules produce. In reality, high solar panel temperatures can reduce the efficiency of PV systems, and in some cases, the heat can severely damage your solar panels.

Many aspects affect exactly how your PV systems perform, and heat is one of them. So, what conditions allow your solar modules to perform at their best, and what is the maximum temperature a solar panel can withstand? Read on to learn more.

The Best Solar Panel Temperature Efficiency

To generate energy, solar panels do not need specific temperatures but light itself.

Solar systems consist of PV cells (those small, thin quads you see on a panel) made from semiconductor materials designed to convert the sun’s energy into electricity. The energy conversion process works as follows:

solar energy production process

PV modules absorb sunlight with their photovoltaic cells. When light hits these elements, it knocks electrons out of the atoms in the panel material. These free electrons create an electrical current that can be used to power a variety of devices. You can also see exactly how this happens here:

Standard testing conditions determine the solar panel efficiency vs. temperature for best performance from PV modules:



Condition Optimal value
Cell temperature 25°C (77°F)
Illumination 1000 W/m²
Air mass (AM) 1.5



These standardized panel ratings based on a specific operating temperature, solar irradiance, and air mass are industry standards by which manufacturers evaluate their products. While performance may vary depending on brand and model, a typical solar panel performs best at temperatures around 25 degrees Celsius.

The indicator must be the temperature of the solar module itself and not the air one. The panel’s degree of heat is usually higher due to direct solar radiation and limited cooling.

The temperature of PV systems is usually 15-20°C higher than the weather on a clear sunny day. It means that the air temperature should be significantly lower to achieve an optimal solar panel temperature coefficient of around 25°C. Thus:

10-15°C On a sunny day, the module can heat up to 25-30°C, which is close to the optimal conditions.
20°C The panels may reach 40-45°C, which is higher than the optimal temperature, and their efficiency begins to decrease.
30°C The heat of the modules can reach 50-60°C, which will significantly reduce their effectiveness.



Surprisingly, in colder regions (temperatures between 0-10°C), solar panels are more effective, as these conditions are the closest to the optimal ones, resulting in the highest efficiency levels.

Operating Temperature Range of Solar Panels

There is a certain heat range within which your batteries can operate effectively without significant harm or performance degradation.

Although the efficiency decreases slightly, after 30°C, the batteries begin to suffer performance losses. The panels have their solar panel temperature coefficient, where for every degree Celsius above 25°C, PV batteries lose about 0.4% of their efficiency. Therefore, they work most effectively in conditions between 15°C and 25°C.

In this range, efficiency losses are minimal, and the panels can produce the maximum energy. At coldness below 15°C the batteries can perform even better as lower temperatures reduce the internal resistance of the materials

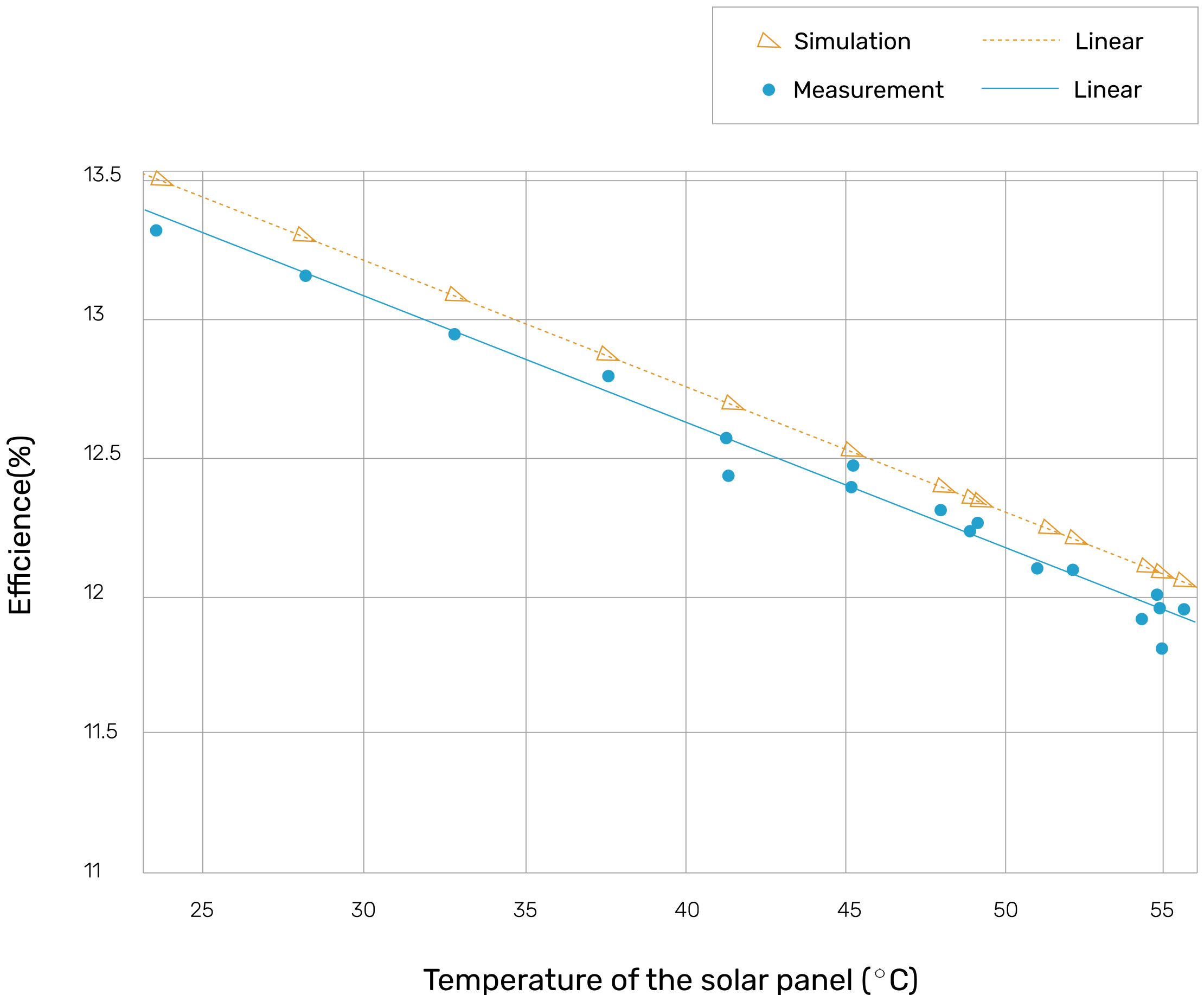

Graphic representation of solar panel efficiency vs. temperature

Source: ResearchGate

The solar panel efficiency vs. temperature graph illustrates how high temperatures (depending on how hot the panels get) reduce the efficiency of solar panels. At temperatures above 25°C, efficiency begins to decline, and at 35°C, panels can lose about 4% of their performance.

Solar Panel Surface Temperature & Seasonality

In summer, at solar panel max temperatures, the system heats up significantly above the ambient temperature reducing its efficiency. Do not forget that a solar battery may contain components with optical properties, which increase the light intensity several times, which leads to heating.

via GIPHY

High ambient temperatures and intense solar radiation can heat the modules to 60°C or higher. Such heat can cause thermal damage, which can cause glass and other components to crack or warp.

Moderate conditions and good sunlight make spring and fall optimal for solar panel efficiency temperature; it is often within the optimal range, allowing the batteries to operate at peak performance.

Low air thermal conditions can help panels operate more efficiently. The modules may perform better in winter at temperatures below 25°C, as the cold reduces the internal resistance of the materials. This is somewhere between 0 and 10°C air temperature.

However, the problem is that during the winter months, the days are shorter, and it reduces the number of hours of direct sunlight. Energy production from PV systems may decrease, especially in regions with significant seasonal changes.

Electricity Prices Keep Trending Up, Jumping 6% in May 2024

The U.S. Bureau of Labor Statistics found that the cost of electricity rose by 6%. It was even more than the increase in the price of housing, clothing, and food. It affects not only consumers but businesses as well. In recent years, the cost of electricity has been rising rapidly, and many are considering purchasing solar panels.

reasons to install PV systems

Source: SuperiorSolar

Calculating the cost of a PV system is easy, so make sure to find a system within your budget. Don’t waste another second and get your free solar quote right away!

The Role of Home Battery Backup

A home battery backup is a device that stores electricity so you can use it if the power goes out or to manage your energy use more efficiently. These batteries can be connected to solar modules or simply to the electrical grid. They may help when solar panel temperature efficiency decreases.

Battery connected to house and a solar panel system

Backup batteries provide the ability to store excess electricity produced by solar batteries. Instead of sending it back to the grid, you can store it and use it later when the modules are not generating power, such as at night or on cloudy days.

Various Types of Battery Backup Devices

  • Lithium-ion batteries are the most common type; they have high energy density, are durable, and can be charged quickly.
  • Lead-acid batteries have a shorter lifespan and require more installation space.
  • Flow batteries are a good, long-lasting option, but they cost more and may require more space.

How To Choose and Install a Good Battery for Home Use

  • Determine the power and capacity to back up your essential devices and systems. Battery capacity is measured in kilowatt-hours (kWh), and power is measured in kilowatts (kW)
  • Make sure the battery is compatible with your PV system and can efficiently store excess energy
  • Consider the initial installation costs as well as the long-term benefits and energy savings.
  • Check the warranty terms and life expectancy of the batteries to determine their reliability and service life
  • Have a professional install battery backups to keep them safe and efficient

To keep batteries performing at their best, don’t forget that regular maintenance is necessary. Some batteries require regular maintenance to keep them in good condition. Learn about these requirements and follow the manufacturer’s recommendations to ensure your batteries are always efficient.

Optimizing Performance: Keeping Your Panels Cool

Solar panel temperature efficiency is better in low thermal conditions. Overheating will reduce their performance. Here are some ways to help keep you cool:

via GIPHY

  • Angle and distance from the roof: ensure the panels are at the optimum angle and leave a gap to allow air to circulate.
  • Reflective surfaces and coatings: Use reflective materials or repellent colors to reflect heat and prevent solar panel surface temperature from rising.
  • Ventilation and water cooling: Install fans or water cooling systems to improve cooling. Cleaning and Condition: Remember to keep the modules free of dust and check the condition of the roof fasteners.
  • Green roofs and tree shade: Use seedlings to cool the panels to maintain heating.

Temperature Is The Key

Temperatures around 25°C are the best solar panel temperatures for the optimal system’s efficiency. That’s because when the temperature rises above the specified level, the efficiency decreases due to an increase in the internal resistance of the module parts. Therefore, the balance between solar panel operating temperature plays an important role in ensuring the panels perform at optimal levels.

Looking for a solar panel system that meets your needs? Don’t waste another second and get your free solar quote right away!

Frequently Asked Questions

How does temperature impact solar panel efficiency?

Temperature impacts solar panel efficiency because hot conditions reduce the voltage solar cells produce, leading to lower overall efficiency. Generally, for every degree Celsius increase above 25°C, the efficiency of a PV system decreases by about 0.5%. Thus, hotter environments can significantly reduce the amount of electricity solar panels generate.

What effect does shade have on solar panel performance?

Shade significantly reduces solar module performance by blocking sunlight, which decreases energy production. Even partial shading can disrupt the current flow, causing a disproportionate drop in overall output. Some solar panels use bypass diodes to mitigate this effect, but overall, minimizing shade is crucial for optimal performance.

Can solar panel efficiency be improved in hot or shaded conditions?

Yes, solar panel optimal temperature in hot or shaded conditions can be improved. Using high-efficiency modules, installing cooling systems, or selecting panels with better temperature coefficients helps in hot conditions. For shaded areas, technologies like microinverters or power optimizers can enhance performance by reducing the impact of shading on the entire system.
