Your Best Guide to Solar Energy Collectors

The solar energy sector is constantly growing and becoming an integral part of U.S power generation. In 2024, global investment in solar surpassed $500 billion, exceeding investments in all other eco-friendly electricity generation methods.

Solar thermal plants are becoming an essential part of the solar market. The solar thermal market is expected to be worth $59.6 billion by 2032. So, let’s dive into the specifics of this technology and how it can benefit you!

What Are Solar Collectors?

As you can guess from its name, these devices gather sunlight and convert it into usable heat. While photovoltaic systems use chemical reactions to generate direct current, collectors gather heat from the Sun’s rays.

Some collectors use this heat to warm water, while others launch a chain of physical reactions to generate electricity — the more complex the collector, the larger the system.

5 Main Types of Solar Thermal Collectors

While marketers can tell you there are over a dozen collector types, most of these devices fit into five categories. Some fit residential and commercial usage, while others are so large that they are designed solely for industrial clients. Let’s examine solar thermal collectors and applications below.

Type	Depiction
Solar Flat Plate Collectors	A black absorber plate inside an insulated box captures sunlight and transfers heat to warm the water inside the system
Evacuated Tube Solar Collectors	These solar energy collectors also capture sunlight to heat the fluid, but their glass tubes are placed in a vacuum, which minimizes heat loss
Parabolic Trough Collectors	Such solar heat collectors are curved mirrors that aim sunlight onto a tube with heat-absorbing fluid
Fresnel Reflectors	Multiple flat mirrors direct sunlight to a central receiver
Solar Power Towers	A large field of mirrors gathers sunlight onto a receiver atop a tower

Flat Plate Systems

These residential solar collectors usually look like a flat box with a black absorber plate. A chain of tubes runs through the plate, carrying a heat-transfer fluid that absorbs the heat and transports it to a storage system. From a distance, they may even appear strikingly similar to photovoltaic panels.

These solar heating collectors require minimal maintenance. In most cases, they are used to heat water and enclosed spaces. Unfortunately, they lose heat in cold and cloudy weather, so they may suit only those who want to heat separate rooms, pools, and guesthouses from April to late September.

Evacuated-Tube Solar Collectors

This heating system uses solar collectors with glass tubes and a vacuum layer to preserve heat for as long as possible. Just like flat-plate collectors, they heat liquids.

Due to their structure, they can heat liquids inside tubes even in cold Chicago weather. However, you must remember that glass tubes are more vulnerable to damage from hail or falling branches, requiring careful handling.

The solar evacuated tube collectors market is full of systems of different sizes and shapes. Meanwhile, the most common options can fit into the average backyard.

Parabolic Solar Energy Collectors

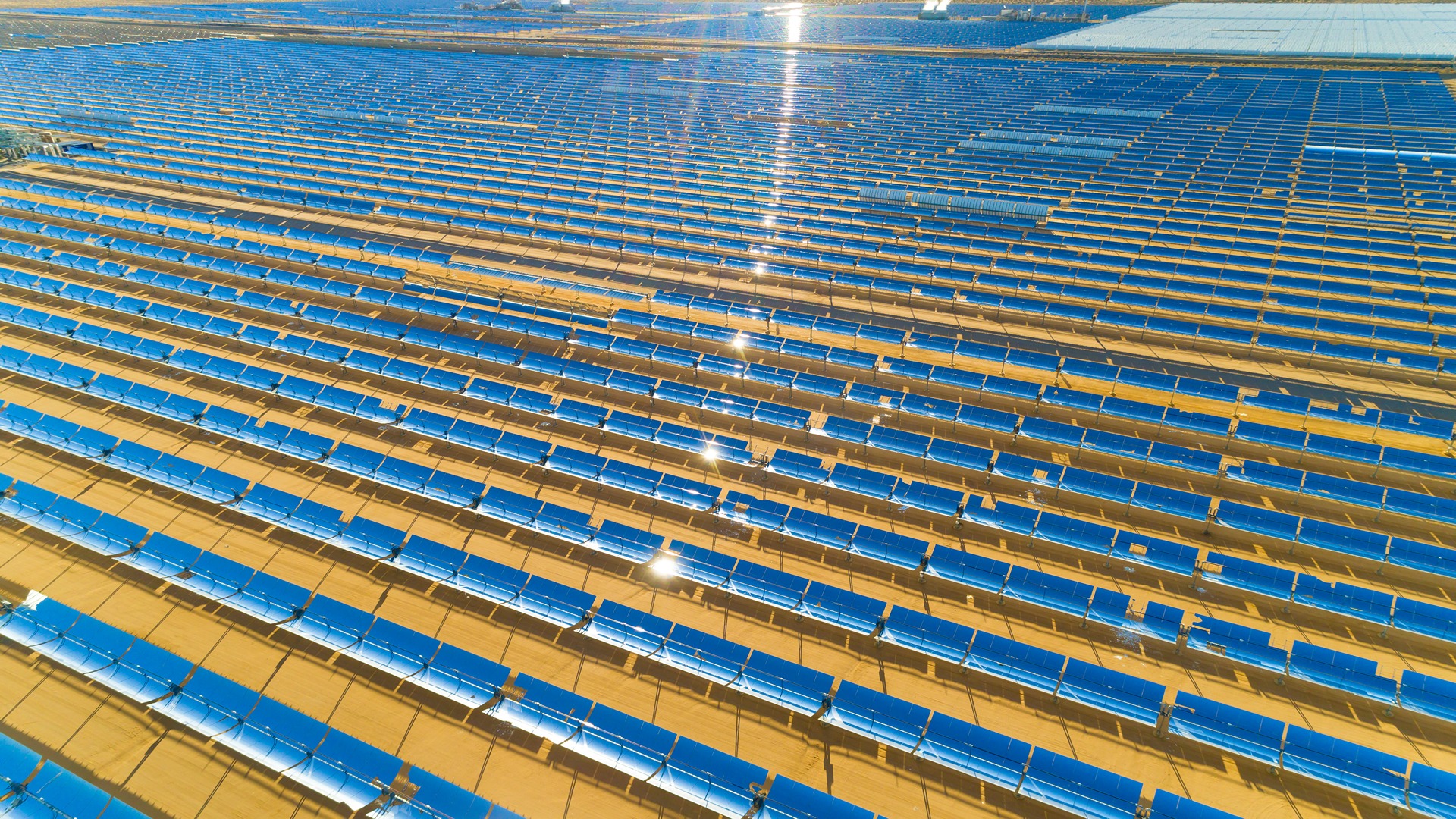

These large solar energy collectors can heat spaces and help businesses generate green electricity. It’s easy to distinguish them among others, as they look like a field of curved mirrors that focus sunlight onto a central long tube (receiver).

This tube is filled with a heat-transfer fluid. In most cases, it’s a molten salt, while it can also be synthetic oils and even water with various admixtures. The system warms this fluid to a boil, and steam drives a turbine to generate clean power.

These solar energy collectors are highly efficient but need a tracking system to follow the Sun and maintain a relatively stable liquid temperature. It increases installation and maintenance costs, while the need for large land areas restricts the use of solar thermal stations to industrial usage.

Fresnel Reflectors

These collectors have a similar operating principle as the parabolic troughs, but instead of large curved mirrors, they use smaller flat mirrors arranged at different angles. This design solution makes them more cost-effective while still achieving great results.

Businesses can use such solar energy collectors in Illinois, as they are highly effective even during the cold winter days. However, they require extensive installation space and a complex tracking system to catch as much sunlight as possible. This is why we see Fresnel systems only in the industrial sector.

Solar Power Towers

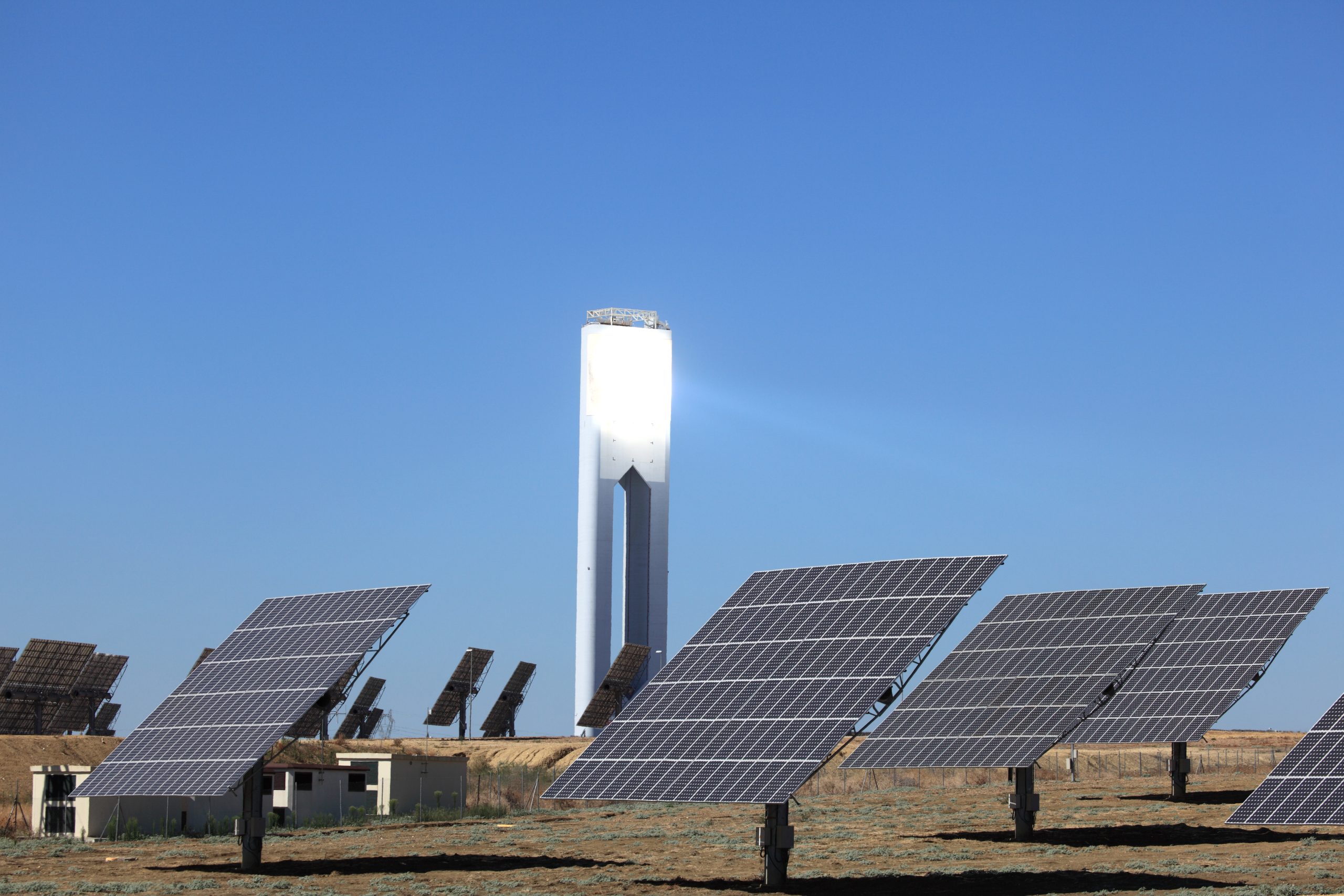

Most people know these solar collectors as concentrated solar power (CSP) plants. These systems use heliostats (mirrors that are controlled by a computer) to focus the heat from the Sun’s rays onto a receiver at the top of a tower. The receiver absorbs heat and transfers it to a fluid, typically molten salt, which is heated to the boiling point. This steam moves a turbine attached to the power generator.

These systems can work at night due to chemical reactions inside a receiver, making them a prime option for industrial applications.

While they are highly promising, you must remember that they require a large land area and hundreds of heliostats. It leads to a high installation process and complex maintenance. So, most businesses place such systems in sunny states such as Florida, California, or Nevada.

The Future Of Alternative Solar Solutions

Solar collectors are slowly becoming as widespread as photovoltaic systems. This alternative solar market will only grow, with estimates suggesting an increase from $29.2 billion in 2024 to $67.87 billion by 2034, showing practically 9% as a compound annual growth rate (CAGR).
